[Coco] I think now I have a final design

[Luis Antoniosi (CoCoDemus)]

I think that is better to use 10K resistors. I will make some testing
today. Using 30K you have a really hard time adjusting it in infinitesimal
turns :S

Also, I found out that I used a pretty obsolete resistor (well my local
store does have it). It's the same resistor shape you have on the coco2
boards close to the mc1372, the black round resistor.

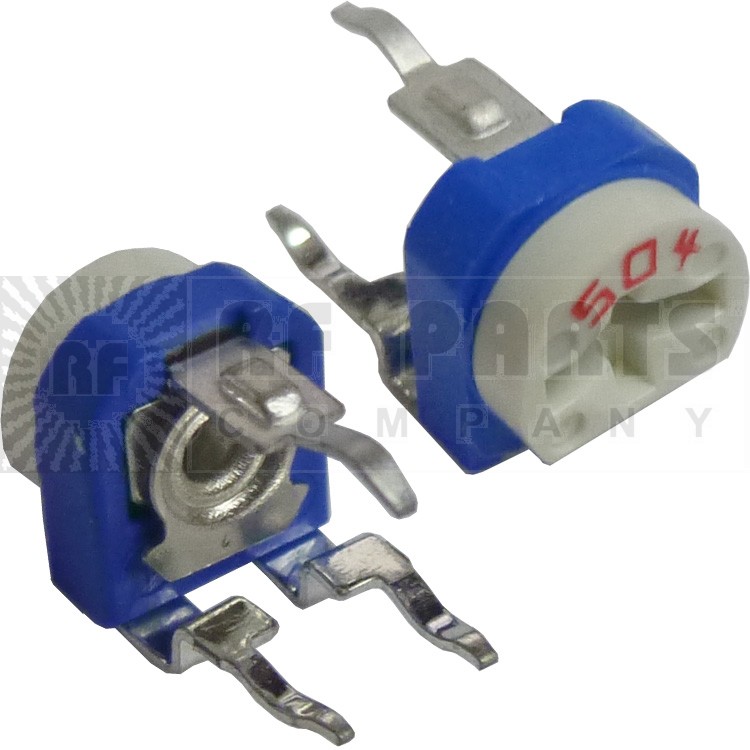

Anyway this kind of resistor can be placed just bending a little one leg:

http://www.rfparts.com/media/catalog/product/cache/1/image/99a5ad2c495df71db96a88d676e5ff23/g/a/galxvr-500.jpg

And it's pretty available on ebay at least.

This is something to change on next board revision.



Luis Felipe Antoniosi



On Tue, Nov 4, 2014 at 9:10 PM, Steven Hirsch <snhirsch at gmail.com> wrote:

> On Tue, 4 Nov 2014, Retro Canada wrote:
>
>  did you try radio shack :) ?
>>
>
> Just checked their web site and they do not carry that part.  Which
> doesn't surprise me, since they can be counted on to never have what you're
> looking for.
>
> "You've got questions?  We've got blank stares!"
>
>  Yes, unfortunately 30k through-hole 1-turn pots are pure unobtanium these
>> days.  I'll use something close from the parts bin :-).
>>
>
>
> --
>
> --
